The J2114A is a solid-state high CMRR (> 100dB) Amplifier or ground loop isolator, that provides the BEST isolation for low impedance measurements. The J2114A removes the groups loops associated with VNAs and Oscilloscopes which occur in many different types of test setups.
Key Features
- Enables measurement of micro ohm impedances
- Greater than 100dB isolation
- Eliminates DC ground loop down to DC
- Works up to 10MHz
- Supports the 2 Port Shunt Thru impedance measurement required for Power Distribution Networks (PDNs)
- Works with all types of test equipment to eliminate ground loops, such as Network Analyzers, Oscilloscopes and Spectrum Analyzers
- Excellent CMRR performance
- Popular for oscilloscopes – isolate probe grounds – J2114A is optimized for pulse response
- Perfect for ultra-low impedance PDN measurements
What’s included
- J2114A High CMRR Isolation Amplifier – Ground Loop Breaker
- 0.25m BNC-SMA PDN Cable®
- USB-C Cable
- 1 Year Warranty
Description
The J2114A’s frequency response, as shown below, is flat from DC to over 10MHz, all while maintaining 50Ohm impedance at both the input and the output for accurate, low-noise measurements. It allows measurements both lower and higher in frequency than what is achievable with a Common Mode Transformer. The J2114A supports ultra-low power distribution network (PDN) impedance measurement, component measurement, PSRR testing, and many other applications. The J2114A is USB-powered and internally has a +/-12V isolated DC/DC converter. The input voltage range is approximately +/-10V without attenuating probes or DC blocks.
Questions? Don’t hesitate to contact us.

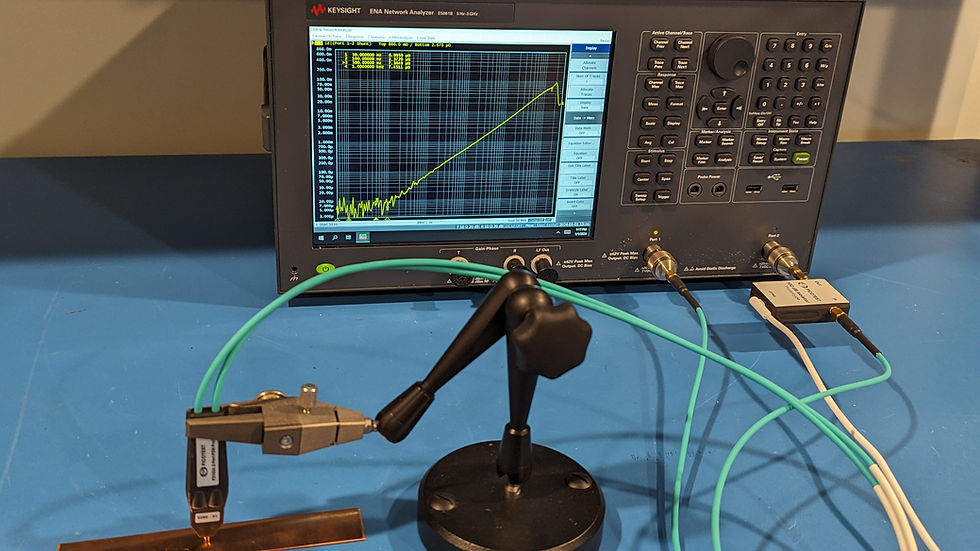

Picotest J2114A High CMRR Isolation Amplifier - Ground Loop Breaker
Recommended Bandwidth DC-10 MHz Maximum Voltage Common mode + differential is 9.5V max Maximum Voltage Differential Differential mode is 7.07 Vrms max 9.5Vpk CMRR > > 100dB Temperature Range 0-50°C Maximum Altitude 6000 Ft Caution
To avoid equipment damage and/or severe injuries or death ensure that the absolute maximum ratings are observed and not exceeded at all times.
