KEY FEATURES:

Easily measure and analyze:

Stability of Power Supplies such as DC/DC converters, switchers, POLs, and LDOs
PDN and VRM Output Impedance - Power Integrity
Characteristics of passive components and circuit boards (SPICE modeling)
Power-plane impedance for optimum decoupling
Swept S-parameters (Touchstone) of electronic circuits and filters
Complex gain of any circuit (Loop gain, filter and amplifier gain, etc...)
Complex impedance and admittance
Ultrasonic and piezo-electric devices
Resonance behavior of high Q-circuits like oscillating crystals
Group delay characteristics of your DUT

Click here if you would like to reserve an Evaluation (‘Demo’) Unit. We will add you to our list and as soon as a unit becomes available, we will contact you. There is no cost to demo our products!

FAST AND EASY MEASUREMENTS WITH THE BODE 500

With the multifunctional Bode 500, you get an exact picture of your electronic circuits and components in a frequency range from 10 mHz to 450 MHz. The Bode 500 is not only a state of the art Vector Network Analyzer, but it also works as:

Frequency Response Analyzer
Impedance Meter
Gain Phase Meter
Sine Wave Generator

Accurate and compact with an unbeatable price-performance ratio, it is the best choice for industrial applications as well as research and educational labs.

The Bode 500 VNA is the perfect tool for application fields like production, research and development, educational institutions as well as service and maintenance. The compact hardware is controlled from the easy-to-use and intuitive Bode Analyzer Suite via USB.

MEASURING ON THE GO

The lightweight and portable hardware design combined with the Bode Analyzer Suite for Windows guarantee a very easy and user friendly handling of the Bode 500. Moreover, an OLE automation interface allows integrating the Bode 500 in any automated system.

The Bode 500 system includes:

Bode 500 instrument
Printed Quick-Start Guide
1x Wide-range AC power adapter
1x USB-A to USB-C cable
1x Test objects on PCB (Quartz-filter and IF-filter)
1x N-Thru (f-f) adapter
1x N-Short (m) adapter
1x N 50Ω termination (m)
2x N-BNC (m-f) adapter
1x BNC-T (f-f-f) adapter
2x N-N (m-m) cable 50 cm
3x N-BNC (m-m) cable 50 cm
2 Year Warranty

For more details, download our Bode 500 brochure.

CALIBRATION

Calibration is performed as part of the manufacturing process. Factory calibration includes adjustment and calibration of the device and can be repeated anytime. The calibration includes a 6-month warranty renewal. Please ask for ISO 9001 Calibration and Inspection (Order number: P0005784). Every unit comes with a calibration certificate free of charge. The certificate is included in the delivery of a new device and after a repeated calibration. For information on Calibration, please see this page.

*PC not included
**MATLAB is a registered trademark of The MathWorks, Inc.
***Excel, PowerPoint, Visual C++, C#, VB2005 and Windows are registered trademarks of Microsoft Corporation
#LabVIEW is a registered trademark of National Instruments Corporation

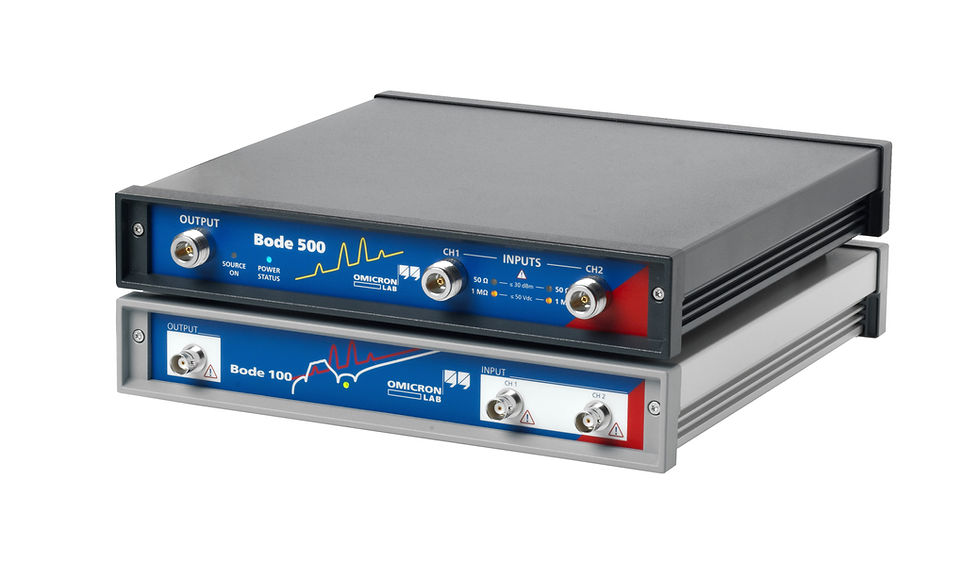

Omicron Bode 500 Vector Network Analyzer

Quantity

If you're not satisfied with this product or it doesn't work for your measurement setup, you can return this product for a full refund within 30 days of purchase.
Two (2) Year Manufacturer's Warranty

If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

Warranty: PICOTEST CORP. guarantees that this product meets its published specifications at the time of shipment from the factory.
Under proper installation it should work as expected.

Warranty Period: This equipment is warranted against defects in material and manufacturing for a period of one (1) year from the date of shipment. During the warranty period, Signal Edge Solutions is responsible for necessary repairs as long as the product can be proved to be defective.
For warranty service or repair this product must be returned to a service facility designated by Signal Edge Solutions. Please contact your local service representative.

Excluded Items: This warranty does not include consumptive parts such as fuses, buttons and relays. Neither does this warranty cover
defects caused by improper installation, improper or insufficient maintenance, unauthorized modification, improper operation, ignorance of environmental specifications or improper software or interfacing.

Remarks:

No other warranty is expressed or implied, except for the above mentioned.

The remedies provided herein are the buyer’s sole and exclusive remedies. Signal Edge Solutions shall not be liable for any direct, indirect, special, incidental or consequential damages.

Limitation of warranty

Our warranties do not cover any damage resulting from unauthorized modification or misuse.

Unless mentioned elsewhere in this document, our warranty does not apply to fuses, probes, and problems arising from normal wear or your abnormal operations.

Our warranties do not apply on any direct, incidental, special, or consequential damages.

The above warranties are exclusive and no other warranty is expressed or implied. Signal Edge Solutionsdisclaims any implied warranties of MERCHANTABILITY, SATISFACTORY QUALITY, and FITNESS for any particular reasons.
